Bumblebee DV16D, 63" x 31" (1600 x 800mm) 50-Taper CNC Vertical Machining Center

Made to order

Bumblebee DV16D, 63" x 31" (1600 x 800mm) 50-Taper CNC Vertical Machining Center

Name: Bumblebee DV16D, 63" x 31" (1600 x 800mm) 50-Taper CNC Vertical Machining Center
Brand: BUMBLEBEE
SKU: DV16D
Price: 158812.9 CAD
Availability: InStock

DV16DMade to order

Heavy-cutting 50-taper machine: BBT50 belt-driven spindle with GTP gearbox, 6,000 RPM, roller guides on Z. Table size: 71" x 30" (1800 x 760mm). BBT50 or CAT50 spindle taper, Fanuc 0i-MF Plus controller with a 10.4" or 15" display. Build your exact configuration in our online configurator.

From CA$151,250.38 excl. taxes

Retail price as of 08.25.2026

Configure and View

Product Attributes

Technical Description

Reviews

X Axis Travel, mm

1600

Y Axis Travel, mm

800

Z Axis Travel, mm

700

Table Length, mm

1800

Table Width, mm

760

X Axis Travel, inch

Y Axis Travel, inch

31.5

Z Axis Travel, inch

27.6

Table Length, inch

70.9

Table Width, inch

29.9

CNC Controller

FANUC

Tool Changer Type

24+1 (Arm)

Brand

BUMBLEBEE

Item type

VMC

Technical Description

The Bumblebee DV16D is a 50-taper vertical machining center with 63.0 × 31.5 × 27.6 in (1600 × 800 × 700 mm) of travel, built for heavy cutting: a belt-driven BBT50 spindle with GTP gearbox is standard. The price covers the standard machine below; taper, coolant, control, probing and 4th-axis options are added in the online configurator.

Why the DV16D

The DV16D is the 50-taper version of the DV16A: a 71 × 30 in (1800 × 760 mm) table rated for 3,307 lb (1,500 kg), roller guideways on Z and ø50 mm ball screws on all three axes. The BBT50 spindle runs on a timing belt through a GTP gearbox — torque in the low range for heavy roughing, 6,000 rpm in the high range. The tool changer takes 50-taper tools up to Ø 4.4 in (112 mm), 13.8 in (350 mm) long and 44 lb (20 kg).

The Fanuc 0i-MF Plus is the 3A system with the fine surface package and 1,500-block look-ahead. The Z axis has no counterweight and lifts automatically on power loss or emergency stop.

Key Specifications

Travel X / Y / Z	63.0 × 31.5 × 27.6 in (1600 × 800 × 700 mm)
Spindle nose to table	3.9–31.5 in (100–800 mm)
Spindle center to column	31.5 in (800 mm)
Table	70.9 × 29.9 in (1800 × 760 mm), 5 T-slots 18 mm × 125 mm
Max table load	3,307 lb (1,500 kg)
Spindle	BBT50 (dual contact), belt drive with GTP gearbox, 6,000 rpm
Spindle motor power (cont / max)	20.1 / 27.4 hp (15 / 20.4 kW)
Spindle motor torque (cont / max)	105.5 / 191.0 ft-lbf (143 / 259 Nm), multiplied by the GTP gearbox in low range
Rapids X / Y / Z	787 ipm (20 m/min)
Max cutting feed	394 ipm (10 m/min)
Tool changer	24+1, side-mounted, arm type, 4.0 s tool to tool, 6.7 s chip to chip
Max tool	Ø 4.4 in (112 mm), Ø 8.7 in (220 mm) with adjacent pockets empty, 13.8 in (350 mm) long, 44 lb (20 kg)
Positioning / repeatability (VDI/DGQ 3441)	0.012 / 0.010 mm (0.0005 / 0.0004 in)
Control	Fanuc 0i-MF Plus, Step 2, type 3A absolute
Machine weight	26,676 lb (12,100 kg)
Footprint L × W × H	16.4 × 11.5 × 10.4 ft (4990 × 3500 × 3180 mm)
Power / air	220 V, 3-phase, 60 Hz, 40 kVA / 87–116 psi (0.6–0.8 MPa)

Included in Every DV16D

Belt-driven BBT50 spindle with GTP gearbox, 6,000 rpm
24+1 side-mounted arm-type tool changer
Two coil chip conveyors along X on both sides of the table, side discharge through filter screens into a large coolant tank
Two high-power pumps: coolant, and high-flow chip flushing with water gun
Fanuc 0i-MF Plus control, 10.4" display, portable handwheel (MPG), rotating operator box
Rigid tapping
Coolant around the spindle, machining air blow, spindle air seal
Spindle oil chiller
Heat exchanger for the electrical cabinet; separated high- and low-voltage cabinets
Automatic grease lubrication (LUBE, Japan), pneumatic system
Air gun and water gun
Full enclosure, safety door interlock, work light, 3-color signal lamp, auto power-off, coolant level sensor
Transformer 220 V / 60 Hz, main switch with CSA
Oil skimmer
Leveling bolts and pads, tool kit, operation manuals

Popular Options

CAT50 spindle taper and tool changer (from BBT50)
FANUC 15" LCD package with Manual Guide i conversational programming and 2 GB data server
30 bar (435 psi) through-spindle coolant
Renishaw probing kit: TS27R tool setter with OMP40-2 or OMP60 workpiece probe
4th axis: Parkson MNC-251R CNC rotary table, ø250 mm, pneumatic brake, with DTS-251 manual tailstock

Full option list with prices — in the configurator.

Construction

Base, column, saddle and table cast iron, stress relieved three times (two thermal, one vibration aging)
Linear guideways PMI (Taiwan) – THK (Japan): X and Y ball type size 45, Z roller type size 45
Ball screws ø50 mm (pitch X 12, Y and Z 10 mm), PMI (Taiwan) – THK (Japan), directly coupled to the servo motors, fixed–pretensioned support
No counterweight on Z — high-torque servo motor holds the spindle head
Spindle VOLIS (Taiwan) BBT50, timing belt drive with GTP gearbox; NSK (Japan) 40TAC bearings
Tool changer SJ-ATC – GIFU (Taiwan) – OKADA (China)
Cabinet heat exchanger HAOSCH (Germany); spindle oil chiller HAOSCH (Germany) – WDTOPS (China); lubrication LUBE (Japan); pneumatics SMC (Japan)

Control and Electrical

Fanuc 0i-MF Plus, Step 2, type 3A absolute system, with the fine surface package: AI Contour Control II+, Smooth Tolerance+, jerk control and machining condition selection, up to 1,500 blocks look-ahead
I/O on a bus board with reserved 8–16 inputs and 2–6 outputs (SCHRACK relays), expandable by add-on boards
Schneider Electric breakers and contactors, Omron relays, Igus cables, Phoenix Contact push-in terminals, heavy-duty motor connectors
Motor protection breakers on all peripheral motors, surge suppression on contactors, Z-axis lift of 0.05–0.5 mm on power loss or emergency stop, spindle and feed overload protection

Work Zone and Table

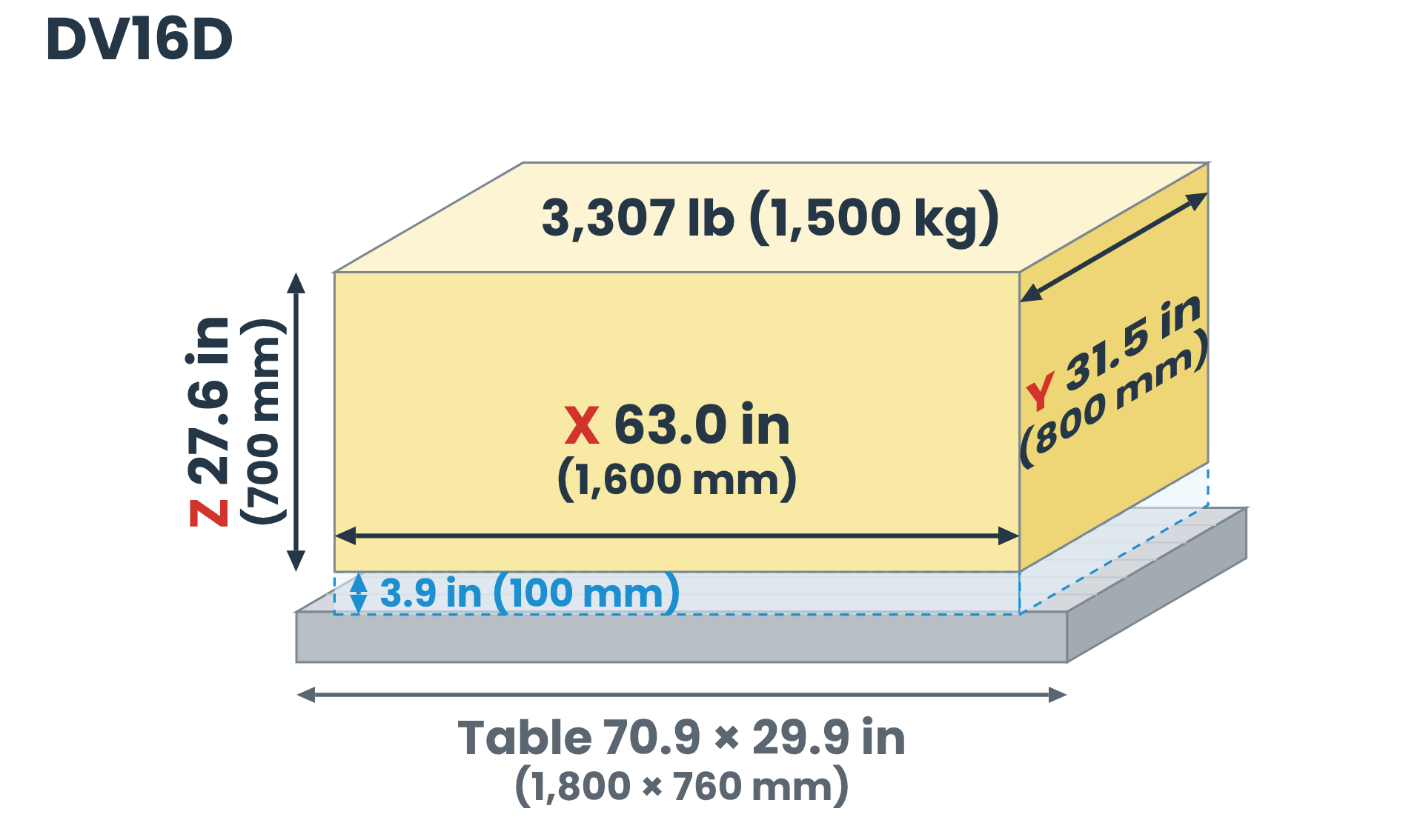

Bumblebee DV16D work zone: X, Y, Z travel, spindle nose to table distance and max table load

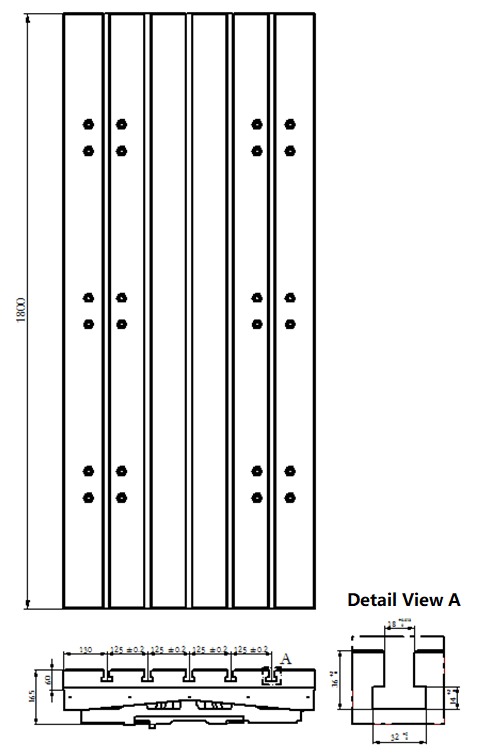

Bumblebee DV16D table drawing with T-slot dimensions

Installation Requirements

Power: 220 V, 3-phase, 60 Hz (machine supplied with a CSA-listed transformer and main switch), 40 kVA. Inlet cable and breaker size for 220 V are confirmed with the order.
Separate grounding, resistance below 3 Ω
Compressed air: 87–116 psi (0.6–0.8 MPa), up to 14 CFM (400 L/min), dew point ≤ 50 °F (10 °C); an air dryer is recommended
Coolant tank: 132 gal (500 L)
Ambient 41–95 °F (5–35 °C), 68 ± 4 °F (20 ± 2 °C) recommended for accuracy; humidity below 75 %
Consumables: LUBE LHL-X100-7 grease cartridge; ISO VG32 hydraulic oil

Layout, foundation and shipping drawings are available on request.

Other Sizes

40-taper version: Bumblebee DV16A — same table and travel, belt drive 8,000 rpm spindle
Smaller 50-taper: Bumblebee DV11D — 43.3 × 23.6 × 23.6 in (1100 × 600 × 600 mm) travel
