This 2000 Okuma LB35II-M is a heavy-duty CNC turning center featuring the OSP7000L control and a high-torque 12-inch chuck. Box-ways. 12-station VDI50 turret with live tooling. Last 2 years serviced by CNCmarket.ca.
Std. delivery incl. Crossed-out price = offline retail

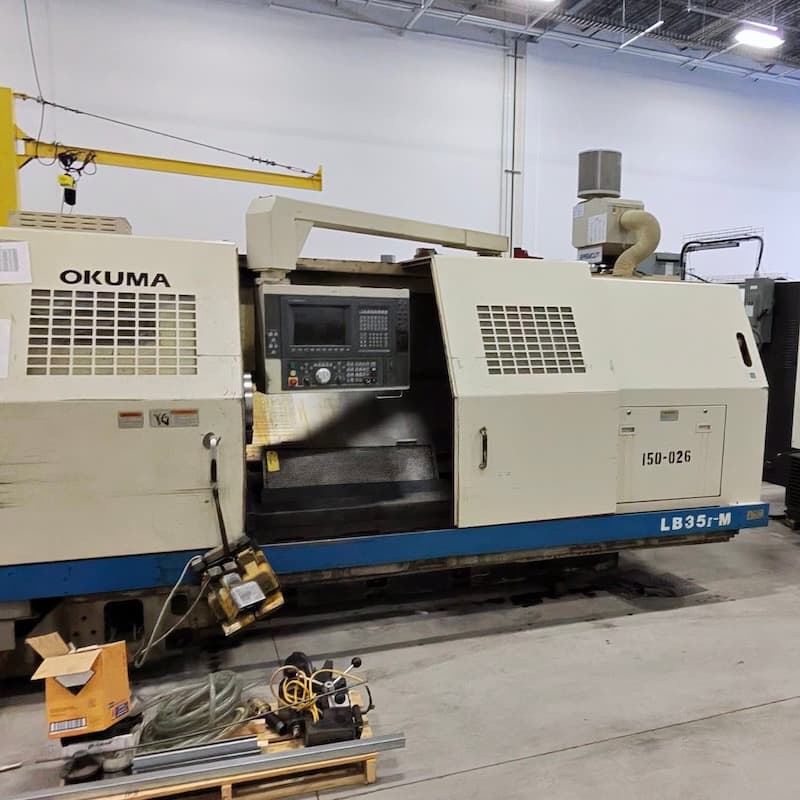

The Okuma LB35II-M is a heavy-duty CNC turning center designed for high-torque metal removal, exceptional rigidity, and long-term thermal stability. Built on massive box ways, the machine delivers excellent vibration dampening and cutting stability compared with many modern linear-guide designs. This makes it particularly suitable for machining difficult materials, large workpieces, and interrupted cuts.
This Okuma LB35II-M (Serial No. 0447, approx. year 2000) is equipped with the reliable Okuma OSP7000L control, a powerful spindle with a 12-inch hydraulic chuck, and a 12-station VDI50 turret with live tooling. The machine allows both heavy turning and secondary milling operations in a single setup.
This particular machine appears to feature a long-bed configuration, providing extended turning capacity compared with the standard LB35II-M configuration.
The machine has been serviced and maintained by CNCmarket.ca during the last two years, ensuring stable operation and readiness for continued production.
Manufacturer: Okuma
Model: LB35II-M
Year: Approx. 2000
Serial Number: 0447

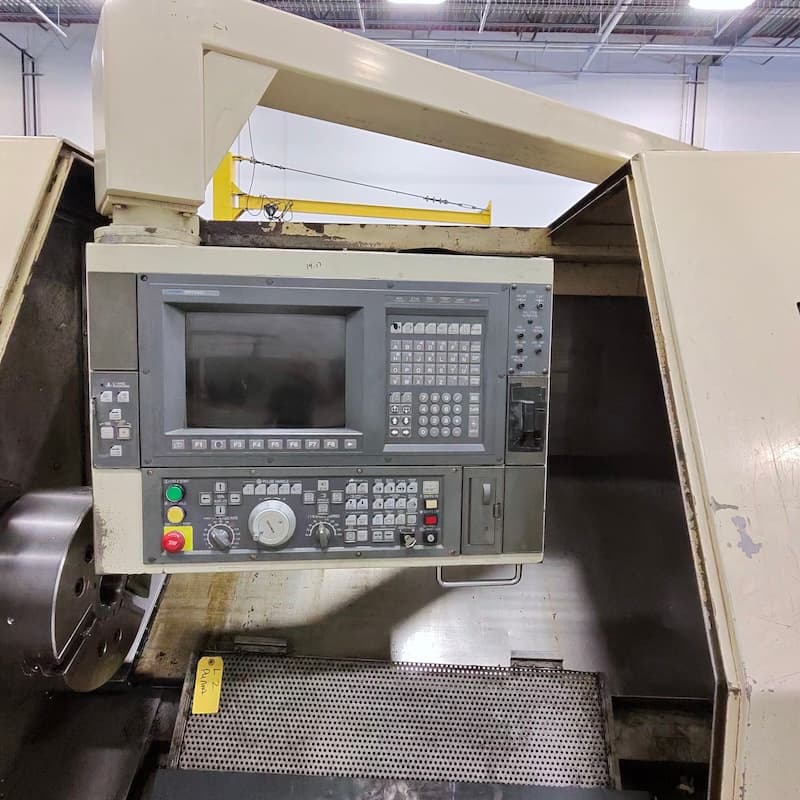

Control System: Okuma OSP7000L
Chuck Size: 305 mm (12") Hydraulic Chuck
Turret: 12-Station VDI50 with Live Tooling
Guideway Type: Box Ways
Spindle Speed: Up to 3,000 RPM (typical configuration)
Main Motor Power: approx. 30 / 37 kW (40 / 50 HP)

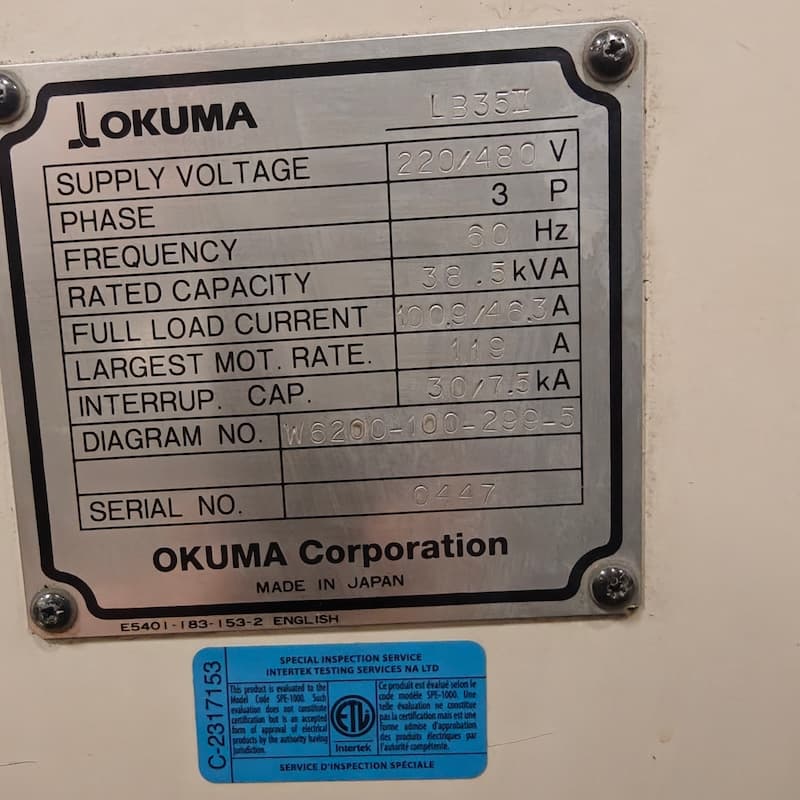

Power Requirement: 220 / 480 V, 3 Phase, 60 Hz
Rated Capacity: 38.5 kVA
Note: Specifications are based on typical Okuma LB35II-M configurations and visible machine data. Exact capacity and configuration should be verified during inspection.
